Label Printers & Presses
-
The QuickLabel QL-E100 features standalone, all-color print capabilities providing high-quality, professional results. Designed with emerging businesses and entrepreneurs in mind, the QL-E100 is easy-to-use, compact, portable, and features a built-in touchscreen interface for seamless print management. At an ideal price point, the QL-E100 is a perfect match for those in the market for an entry-level, user-friendly label printer.
-

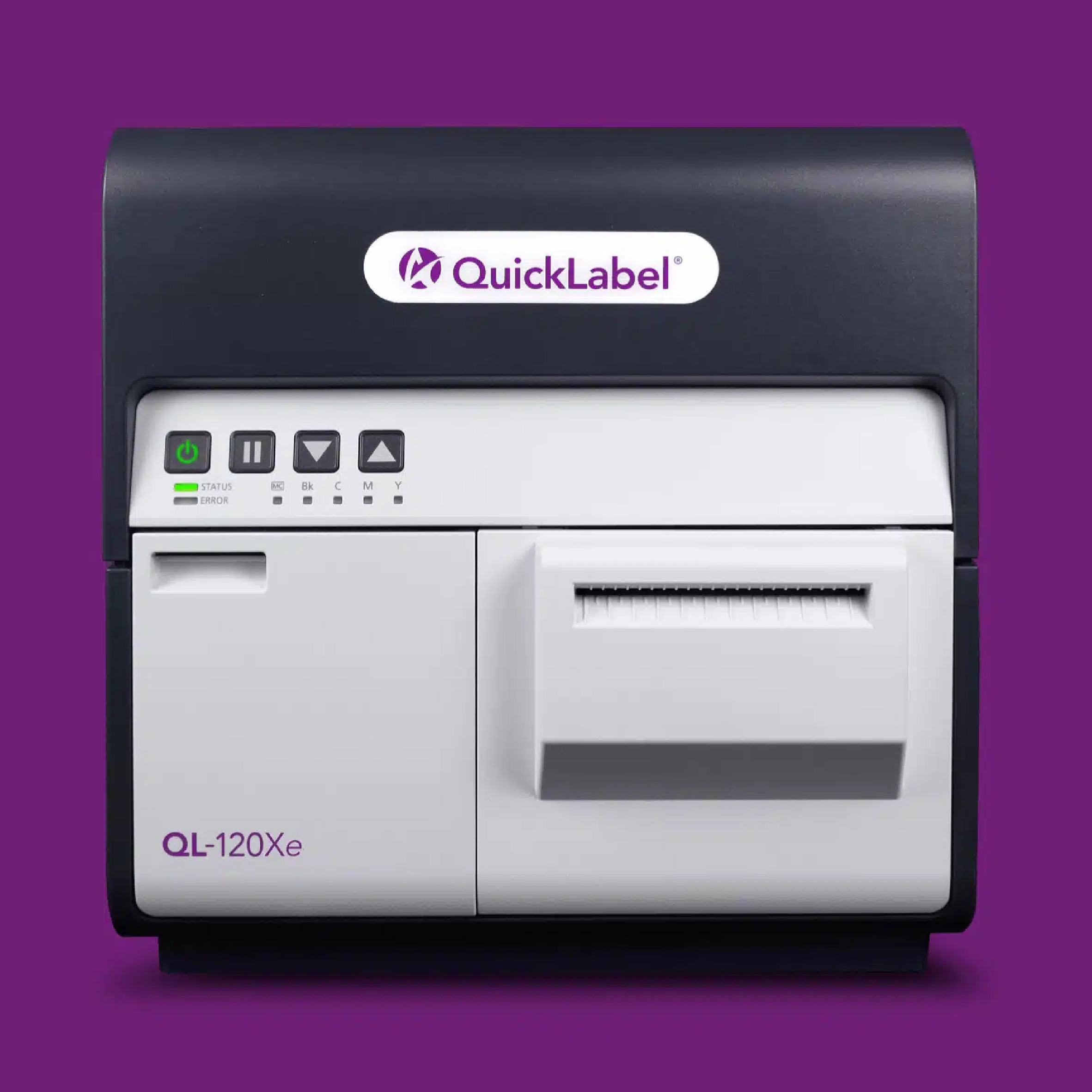

The QL-120Xe features best-in-class performance at an entry-level price – ideal for businesses considering bringing their color label printing in-house.
Ideal for quantities of 2,000 to 15,000 labels per week, the QL-120Xe provides an economical way to start producing custom color labels today with potential savings for months or years to come.
-
The QL-120X establishes a new standard in a color label printer, offering the industry’s best eXtended two-year warranty, eXtended printhead life, and eXtended lifetime benefits delivering high-quality labels at a lower total cost of ownership.
QuickLabel improved and upgraded the award-winning and reliable flagship predecessor Kiaro! that revolutionized the digital color label printing industry to bring you the QL-120X.
-
The QL-120D is the newest member of the QL-120 family of digital label printers, featuring durable pigment-based ink, designed for the harshest labeling applications. Labels printed on the QL-120D provide the ultimate moisture, chemical, and UV fade resistance. Additionally, the QL-120D is BS5609 certified, making it an ideal choice for printing GHS chemical warning labels.
-
Say goodbye to bottlenecks and wasted time. The cutting-edge QL-900 industrial label printer is here to revolutionize your workflow, delivering unrivaled performance, seamless versatility, and exceptional productivity. Designed with demanding environments in mind, this printer harnesses the power of industrial-grade technology to deliver outstanding results. The QL-900 effortlessly tackles high-volume label runs with utmost precision and sets new benchmarks in productivity, empowering your production to operate at maximum efficiency. With its lightning-fast print speeds and advanced features like roll-to-roll printing, you can swiftly generate high-quality labels, optimizing your output and meeting tight deadlines without compromise.
The QL-900 provides a step-up in usability and flexibility, featuring a built-in touchscreen interface, which includes a built-in job library, support for external RIP solution, and visual status of the printer locally (without needing an additional s/w utility installed on the host).
Flexible options for roll-to-roll, roll-to-cut or in-line printing capability, providing the perfect solution for specific labeling needs.
Features (2) Black K ink tanks, affording users less frequent Black cartridge changes and, therefore, enabling higher volume runs.
Provides the total printing solution, including supplies such as exclusive supply purchase programs, ongoing technical support, and a variety of label materials and substrates.
-
The QL-300 is the world’s first CMYK+White toner-based tabletop label printer that enables brand owners to create high-quality labels with the utmost durability, ensure a competitive cost of ownership, and set their brand apart with vibrant, impactful product labels. Also available in 4 color CMYK for applications not requiring white ink/toner.
-
The Kiaro! 200 Z-fold delivers the convenience of single-sheet print and tear-off, with high productivity and flexibility for a wide array of labeling applications, including multi-part medical device or pharmaceutical labels, industrial labels, and more.
-
With middle-aligned media and high print speeds, the QL-30 thermal transfer label printers are the superior choice for consistent monochrome standalone or integrated labeling applications. The QL-30 can print up to 11.8 ips at 300 dpi. With the ability to print labels as small as 4 mm in length, high accuracy, and fast print speeds, the QL-30 are both unmatched in the market.
-
With middle-aligned media and high print speeds, the QL-60 thermal transfer label printer is the superior choice for consistent monochrome standalone or integrated labeling applications. The QL-60 can print up to 5.9 ips. With the ability to print labels as small as 4 mm in length, high accuracy, and fast print speeds, the QL-60 is unmatched in the market.
-
The T2-C is the first-ever high capacity, high volume tabletop label press capable of delivering precision over long runs. Producing consistent, high-volumes in 24/7 production, the T2-C opens new doors in the label printing industry.
Label Printers & Presses
-
The T3-OPX represents a next-generation, direct-to-package solution. Offering superior, wide-format print capabilities at fast speeds, and the ability to print on a variety of materials like postcards, boxes, paper bags, wooden planks, or thicker objects like blister envelopes or folded boxes ready for shipment, and more, the T3-OPX allows for late-stage customization and packaging and design versatility.
Conveyor Table or Printing Equipment Manufacturers
Want to integrate the print module with your equipment? The print module lends itself to easy integrations with 3rd party equipment. Our technical team can assist you with drawings, I/O controls, software APIs, and all necessary documentation to make the integration process effortless. You can tailor a solution to meet your customer’s unique needs faster than ever before. You’ll find case studies of our successful integrations listed in our resource center.
-
Branded Product Packaging Meets Emerging E-commerce Requirements
Seize Emerging Opportunities in The Short-Run Corrugated Box and Envelope Printing Space
Corrugated boxes and envelopes have long been the preferred container of choice for delivering a broad range of e-commerce products to your doorstep.

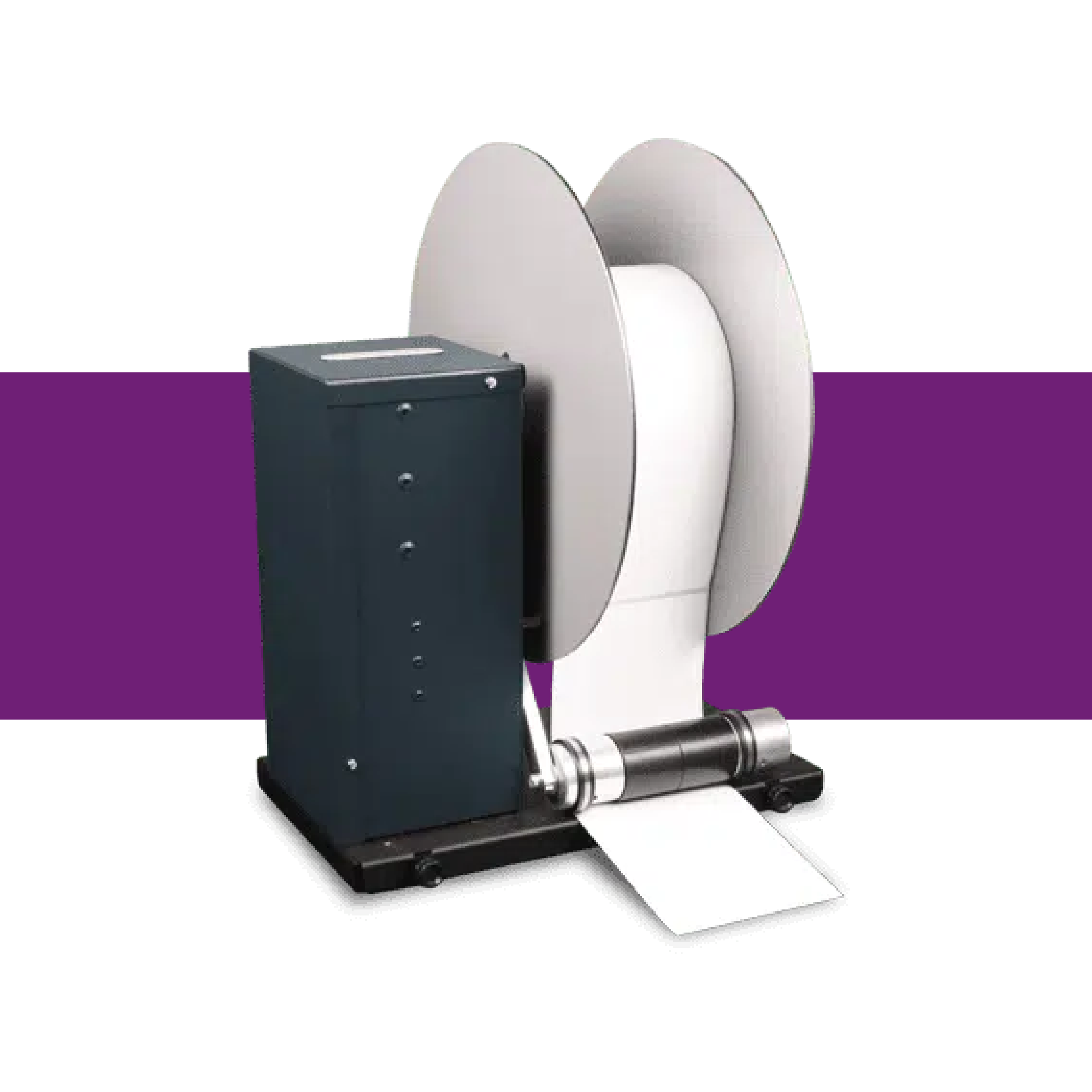

Label Rewinders
-
For use with the QL-300 label printer
Maximum Rewind Diameter: 9.8″ (25 cm)
Minimum Label Width: 1.0″ (25 mm)
Maximum Label Width: 6.7” (170 mm)
Core Size: 3″ ID (76 mm)
Rewind Torque: Self-regulating for QL-300
Power Requirements: 100-240VAC to 24V, 5A External Power Adapter
Dimensions: 18.4” (47 cm) x 17.6” (45 cm) x 15.7” (40 cm)
Weight: 24.3 lbs. (11 Kg)
-
For use with the QL-800 label printer
Maximum Rewind Diameter – 10.0″ (25.4cm)
Minimum Label Width – 2.0″ (51mm)
Maximum Label Width – 8.3″ (211mm)
Core Size – 3″ ID (76mm)
Rewind Direction – Fixed
Rewind Torque – Self-regulating for QL-800
Power – Universal Voltage
-
Specifications
For use with the QL-120X, QL-120, QL-120D, Kiaro!, Kiaro! D & QL-111 label printers.
Maximum Rewind Diameter: 11.81″ (30cm)
Label Width: 1.0″ (25mm) – 4.72″ (120mm)
Core Size: 3″ ID (76mm)
Rewind Direction: Fixed
Rewind Torque: Self-regulating
Power: Universal Voltage
Includes adjustable printer and winder alignment plates
Dimensions: 15.8″ (402mm) H x 12.6″ (320mm) W x 11.9″ (302mm) D
Weight: 16 lbs. (7 kg)
Shipping Weight: 21 lbs (14 kg)
-
For use with Kiaro! 200 & Kiaro! 200D label printers
Maximum Rewind Diameter – 11.81″ (30cm)
Minimum Label Width – 4.92″ (125mm)
Maximum Label Width – 9.07″ (230mm)
Core Size – 3″ ID (76mm)
Rewind Direction – Fixed
Rewind Torque – Self-regulating for Kiaro! 200 & Kiaro! 200D
Power – Universal Voltage
-
For use with the QLS-4100 Xe label printer.
Maximum Rewind Diameter: 12″ (30cm)
Label Width: 0.75″ (19mm) – 6.5″ (165mm)
Core Size: 3″ ID (76mm)
Rewind Torque: Adjustable
Maximum Rewind Speed: 30 inch/sec (76 cm/sec)
Power: Universal Voltage
Label Unwinders
-
The unwinder will sit behind the printer, unwinding labels that are pre-loaded, and feeding them to the printer.
For use with the QL-800 label printer
Maximum Unwind Diameter – 11.87″ (301.5 mm)
Maximum Label Width – 8.5″ (216 mm)
-
The QuickLabel Unwinder makes label management easy.
The QuickLabel Unwinder adds versatility to your label printing system with the ability to manage the process of supplying large diameter label rolls to the Kiaro! label printer. With a maximum label diameter of 11.81” and maximum width of 4.72” you can use a large quantity roll of labels, saving you inventory space and time without the need to replenish your label roll as often.
Use in combination with the RW-5.1 Rewinder for a complete roll-to–roll label printing system.
The QuickLabel Unwinder comes complete with a One-Year Warranty.
How it works: The unwinder will sit behind the printer, unwinding labels that are pre-loaded, and feeding them to the printer.
Specifications
For use with the QL-120X, Kiaro! QL-120, Kiaro!, Kiaro! D & QL-111 label printers.
Maximum Unwind Diameter – 11.81″ (30 cm)
Maximum Label Width – 4.72″ (120 mm)
Minimum Label Width – 1.0″ (25 mm)
Core Size – 3″ ID (76 mm)
Unwind Direction – Fixed
Unwind Torque – Self-regulating
Power – Universal Voltage
Includes adjustable printer and winder alignment plates
Dimensions – 15.8″ (402 mm) H x 12.6″ (320 mm) W x 11.9″ (302 mm) D
Weight – 16 lbs. (7 kg)
Shipping Weight – 21 lbs. (14 kg)
External Pause Option
-
The External Pause Option allows for simple, seamless integration to a wide range of external devices, configuring to print a single label at a time, multiple labels or the entire print job. QuickLabel’s module provides the functionality necessary to fill a loose loop and eliminate the need for costly, time-consuming control system programming.
This pre- programmed module eliminates of the need to learn and program in the printer’s control language.
Additional Benefits:
Monitor status of printer activity or error messages on the LCD display
Trigger your label printer to produce batches of labels, pause, or stop the batch all together
Connect external signaling devices such as a light pole or audible alert
“High Speed” mode for applications where higher throughput is required
One Year Warranty, fully supported and guaranteed to work with QuickLabel label printers
Perfect for: e-juice manufacturers, chemical and medical device manufacturers and more.
Specifications
Display — (2×16) alphanumeric, backlit LCD
External Controls — Manual Pushbutton for Activation and Boot Control
Internal Controls — 8-position DIP switch for print mode control, print quantity upon trigger and initiate printhead cleaning (high speed mode only)Jumpers for selection of internal/external 3.3V or 5V logic or external Vin (max. 24VDC)
Interfaces — QuickLabel Printers
RS232 Serial Port, 9-pin Female D-Shell connector 6’ (1.8m) Serial Cable included
Hardware I/O
Quick disconnect, locking 10-pin header connector
(3) N.O. Relay Contacts, max. switched 30V AC/DC
(2) Logic level I/O, >70msec to active
External Common
External Vin
Internal USB 2.0 interface for firmware updates
Power Connector — Coaxial Type A: 5.5mm ID/2.1mm OD, center positive(per IEC 60130-10:1971)
Power Requirements — Universal Power Supply, interchangeable worldwide plugs included Input: 100-240VAC @ 0.3A 50/60Hz Output: 5VDC @ 1.2A
Power Consumption — 0.75W (5VDC @ 150mA)
Dimensions — 4.0” W x 2.25” H x 4.875” D (102mm W x 57mm H x 124mm D)
Weight 0.82 lbs (0.37 Kg)
Compliance Standards– Safety: CE, ETL/UL/cUL (60950-1)EMC/EMI: FCC Part 15 Class B, EN55022 Class B RoHS Compliant
Label & Tag Cutter/Stacker
-
This rotary cutter/stacker attaches to the QL-30 and QL-60 via USB and integrates to allow users to print, accurately cut, and stack tags or labels in a single process.
Minimum Cut Length: 0.08″ (2 mm)
Maximum Cut Length: 6″ (154 mm)
Maximum Label/Tag Thickness: 12 Mil (0.012”, 0.30 mm) of card stock
Label Matrix Removal System
-
Removes excess label matrix and rewinds finished labels onto a neat roll ready to be loaded onto a label applicator or dispenser. It may also be used as a rewinder only without matrix removal.
Specifications:
Maximum Rewind Diameter: 8.0” OD (20 cm) roll
Minimum Label Width: 1.0” (25 mm)
Maximum Label Width: 6.0” (15 cm)
Core Size: 3” ID (76 mm)
Power Requirements: 100-240VAC to 19VDC, 80W External Power Adapter
Dimensions (shipping): 26″ (10.2 cm) x 16″ (6.3 cm) x 12″ (4.7 cm)
Weight: 32 lbs. (14.5 Kg)
All-in-One Desktop Finishing System
-
The LF-100 and LF-200 Label Finisher is a professional, compact, all-in-one desktop finishing system featuring die-cutting and lamination of labels in a single pass.
The system features a highly accurate, digital die-cutter to produce professional labels of virtually all shapes and sizes, while optionally applying a laminate to give labels a high gloss and durable finish.
High-Speed Commercial Vacuum Friction Feeder
-
Unique in the market and designed to meet the rigorous demands of today’s commercial environments, the VF280 feeder can easily handle a diverse range of products and provides seamless job-switching capabilities at high-capacity volume, especially when used with the TrojanLabel T3-OPX.
Specifications:
Material Size
3″W x 5″L – Max 29″W x 28″L
(76mmL x 127mmW – Max 737mmW x 711mmL)
Material Thickness
1″ Max (in standard configuration)
Electrical
110/220 VAC, single-phase, 10A circuit
Interlock
Dry Contact (Low Volt) Standard Operator
Controls
Power (on/off), Vacuum (on/off), Stop, Jog, Start, Feed Speed
Physical
24″L x 37.5″W x 33-36″H
(610mmL x 952mmW x 838mm – 914mmH)
Features
Quick and Easy Setup
Variable Speed Transport
Adjustable Infeed Product Guides
Ergonomic Operator Panel
Feeds a Wide Variety of Products
High-Capacity Feed Hopper
Independently Controlled Self-Contained Vacuum
Uncompromising Drivetrain
High Torque Gear Drive Motor
Steel Drive Pulleys
20″ Wide Steel Rollers
Large Diameter Steel Shafts
Sealed Shaft Locking Collar Bearings
Feeds
Bags
Envelopes
Heavy Card Stocks
Corrugated Cardboard
Jewel Cases
Perfect Bound Books
Calendars
Sheet Stocks
