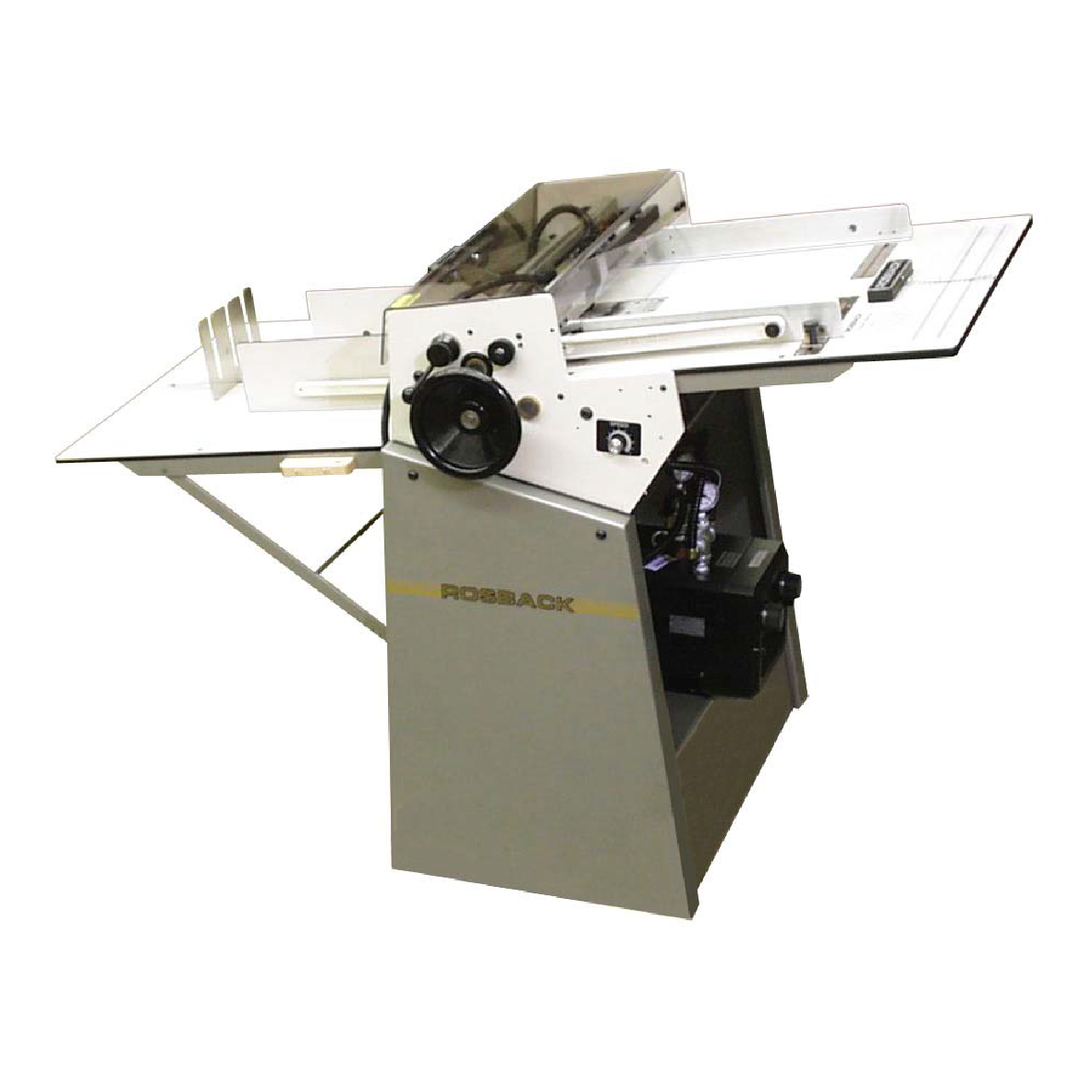

NUMBERING & PERFORATION MACHINES
-
Technical Specification
Max. Sheet Size: 45 x 45cm
Electrical Standard: 120vac, 60Hz,1Ph, 4amp
Cycle Speed: 15,000 SPH
Net Weight: 45.3 Kg
Dimensions(CM): 107(L) X 69(W) X 27(H)
Country of origin: U.S.A
-
Technical Specification
Max. sheet size: 50.8 x 58.4 cm
Min. sheet size: 7.6 X 7.6 cm
Min. Space between standard
lines of perforation: 1.9 cm
Standard Edge margin: 1.9 cm
Dimension: 139.7X81.3X106.7 cm
Net Weight: 125 Kg
-
Key product features
Precision-feeding and sheet control
Up to 8 parallel or convex heads
Full safety enclosures and interlocks
High power vacuum and air pump
Fast, simple make-ready
Imprinting capability
Micro-porous ink roll system
Perforates & numbers anywhere on the sheet in one pass
Adjustable platen pressure
2 perforators & a scorer as standard
Electronic sheet spacing
Continuous operation
Fully mobile
Feeds carbonless sets with open & closed edge leading
Technical Specification
Minimum sheet Size: 210(L) & 125(W) mm
Max. sheet size: 457 x 457 mm.
Maximum Running Speeds: 7000-9000 SPH
Maximum Number of Heads: 8
Power Requirement: 230V -50HZ/60Hz
Weight: 162 Kg
Country of origin: U.K
PAPER DRILLING MACHINES
-
Features
Inverter equipped LA-EX series synchronizes both spindle rotation and stroke speed adjustable by the switch located at the front table with ease.
Easily adjustable drill bit height saves time. Independently moving drilling heads may be useful for any irregular pitch drilling.
Technical Specification
Maximum Drilling Thickness: 65 mm
Drilling Diameter: 3-14 mm
Net Weight: 220kg
Dimensions(W x D x H): 1220x660x1370mm
Power Consumption: 1.5 KW
Power Source: 220-240VAC/50 or 60Hz Single Phase
Country of origin: Japan
-
Features
Inverter equipped LA-EX series synchronizes both spindle rotation and stroke speed adjustable by the switch located at the front table with ease.
Easily adjustable drill bit height saves time. Independently moving drilling heads may be useful for any irregular pitch drilling.
Technical Specification
Maximum Drilling Thickness: 50 mm
Drilling Diameter: 3-14 mm
Net Weight: 220kg
Dimensions(WxDxH): 1220x660x1370mm
Power Consumption: 1.5 KW
Pile height: 50mm
Power Source: 220-240VAC/50 or 60Hz Single Phase
Country of origin: Japan
-

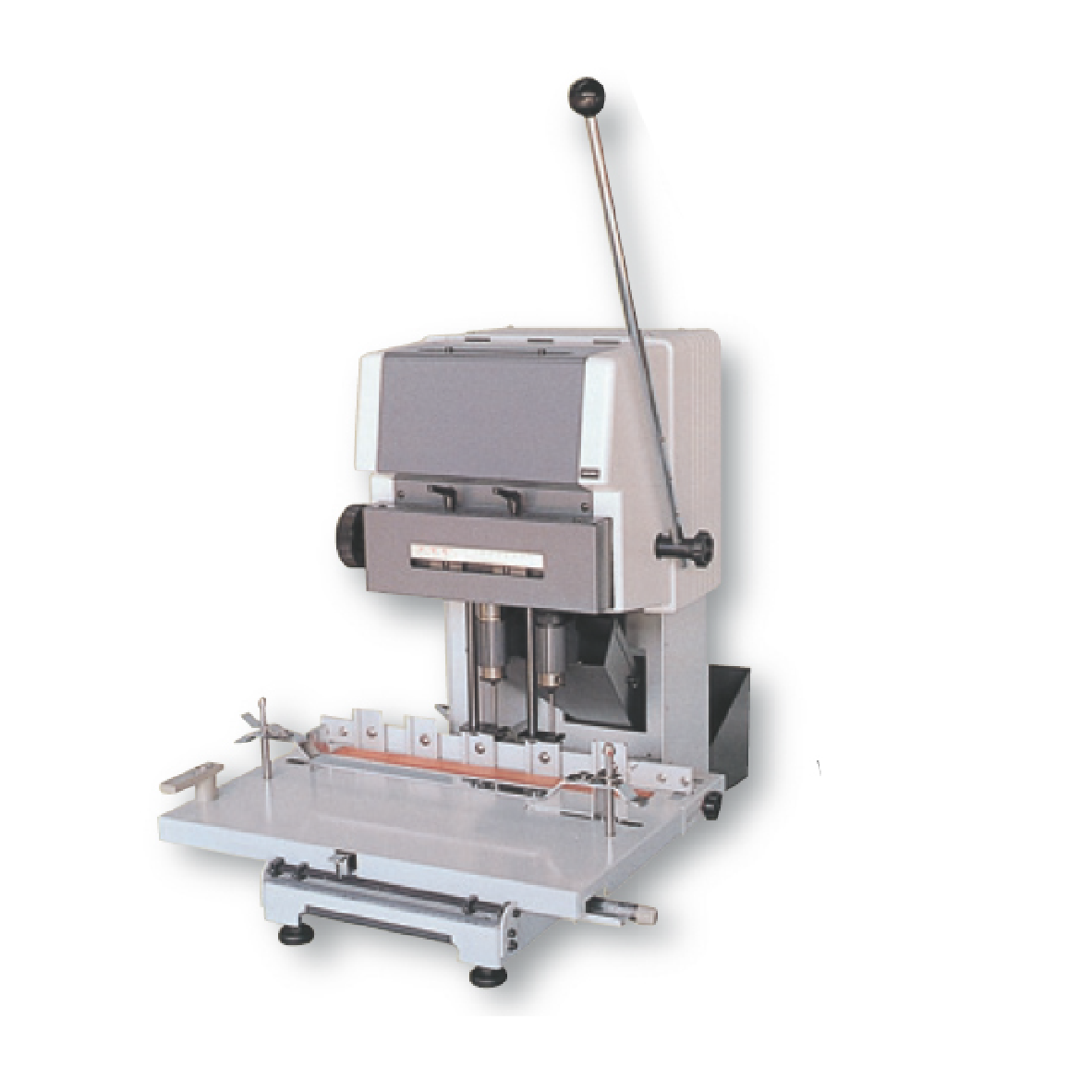

UCHIDA VS-200 is a synchronized twin spindle drill with a pre-programmable pitch bar, 50mm pile height for drilling paper sizes up to A3, bench mounted with centering guides for accuracy
Features
synchronized twin spindle drill
bench mounted
50mm pile height
up to A3 paper sizes
dimensions: 570x753x930mm
weight : 65kg
Technical Specification
Drilling thickness: 50mm
Maximum drilling thickness: 420mm (A3 longitudinal)
Drilling diameter: 3 to 13mm
Back margin: 5 to 60mm
Selection of pitch: By pre-programmed pitch bar (VS-200)
Head distance: 40-142.5mm
Drill bit height adjustment: Manually adjustable by standard tool (5mm)
Paper waste disposal: Natural emission to back side in waste basket
Table Size (W) x (D): 540 x 310mm
Power source: 230 or 240VAC / 50-60Hz, single phase
Power Consumption: 300W
Net weight: 65 kg
Dimensions: 570 x 753 x 930mm
Country of Origin: Japan
-
Technical Specification
Max. Capacity: 50 mm
Maximum Paper size: 376mm (B4 longitudinal)
Drilling diameter: 3 to 13mm
Back margin: 6 to 35mm
Paper carriage: Manual (Table moving)
Table Size: 480(W) x 260(D) mm
Power source: 110, 120, 230 or 240VAC / 50-60Hz
Power Consumption: 200W
Net weight: 30Kg
Dimensions: 480(W) x 430(D) x 685(H) mm
Capacity: 580 sheets/64gm
Country of Origin: Japan
WIRE O WIRE CLOSING & PUNCHING MACHINE
-
Key product features
Can bind up to 1200 books per hour
Double wire diameters 1/4”-3/4”
Book thickness min.3/16”-max 9/16”
Book width 60-520mm
Wire pitch 2:1.3:1, 4:1
Hanger attachment as standard
Technical Specification
Feeding mode Manual
Handling of double wire Automatic cutting, insertion and closing
Wire specification Diameter :1/4″-3/4″ / Pitch 3:1, 2:1
Books thickness 3/16″-9/16″
Max paper length 520mm
Max. binding width 507mm
Min paper length 75mm
Working speed (books/hour) 800-2000
Size of worktable (L*W) 660*300mm
Power supply 220v/1ph/50hz
Air pressure 6-8bar
Machine dimensions 1800*770*1200mm
Country of Origin China
-
Patented Anti-Jam Feature. Our New Overload Detection Feature Triggers an Auto-Reversing Function to Eliminate Jamming in the Punch
Patented “QCDS”, Quick Change Die System. No Tools. Nothing to Take Apart
Comes With 3:1 Square Standard Die.
14″ (356mm) Open-Ended Punching, Allows for Wider Applications
90 Cycles Per Minute
Rated up to 55 Sheets or up to 110
Pages of 20 lb. or 80gsm. The Number
of Sheets Depends on the Paper Weight
and Punch Pattern Used. (15,000 to
18,000 SPH)
Pre-set Paper Stop Guide for Easy Setup
All Punch Pins Easily Disengaged
“Accu-Set” paper adjustment knob for fine adjustments on odd paper sizes.
Easy, “Paper to Pin” Sight Alignment, for Balanced Hole to Edge Margins on Odd-Sized Applications
Smooth, Quiet, Power on Demand Operation
Standard Foot Pedal or Optional Versa Switch
Country of Origin: USA
-
Pull-out extension table: for larger size jobs. Reduces overall foot print when not in use.
Patented quick change die system “QCDS” No Tools, Nothing to take apart
24”/610mm open ended punching: allows for wider applications
90 cycles per minute
Rated up to 40 sheets or up to 80 pages of 20 lb. or 80 gsm.
Extra high capacity chip tray. Large slide out container
Smooth, quiet, power on demand operation
All punch pins easily disengage: with no tools required, pins can be replaced by the user for reduced maintenance costs.
Built-in die storage
Technical Specification
Max. punching width : 610mm
Country of Origin : USA
